Product Overview

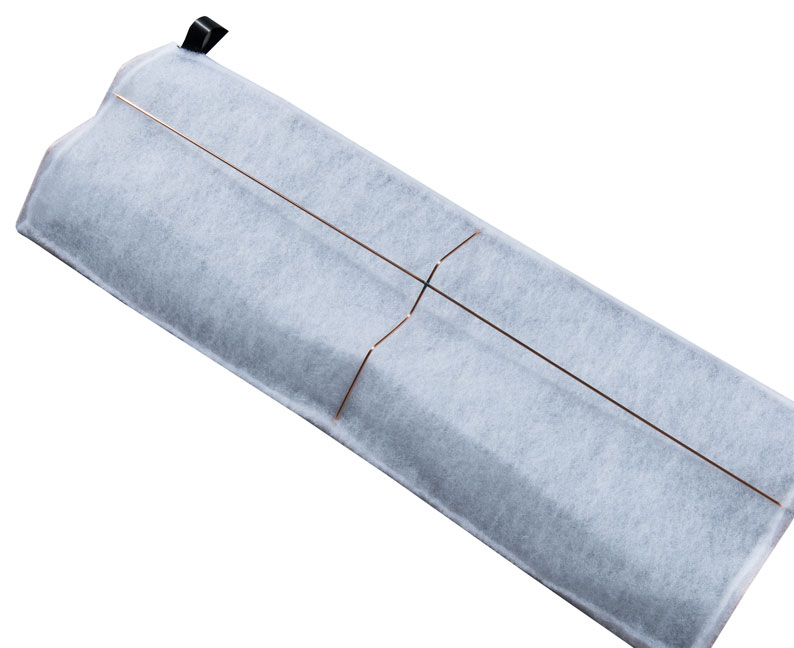

Light, robust and versatile, the White Polyester Synthetic Wire Frame Filter, available in Grades G2, G3 and G4, has a low pressure drop suitable for many applications.
(Also referred to as slimline filters, circa frames, rod frame filters, or peri frames)
Interested in this Product?
Why not drop us a message and we'll get back to you
Applications
Wire Frame Filter with white G2 grade polyester non-woven media.
Economical, light and versatile, used widely to prevent the build-up of dust and dirt in air conditioning units, fan coil systems, warm air furnaces, refrigeration counters and electronic equipment cabinets. It is a low resistance filter often used to protect heat exchanger coils from dust, carpet fluff etc.
This filter can also be used as a pre filter to protect higher grade filters.
Easy to clean, the filter can be vacuumed to remove dust particles.
Specify the G3 or G4 versions for increased efficiency and dustholding capacity.
Hinged or folded versions for extra flexibility, or additional surface area, in difficult locations.
Versions
Our Polyester Wire Frame Filters are available stitched with 5mm G2 white media, 6mm G3 white media and 10mm G4 blue/white media
Performance
| White Synthetic Wire Frames | |||
|---|---|---|---|
| G2 | G3 | ||
| Average Arrestance | % | 75 | 86 |
| Initial Arrestance | % | 58 | 78 |
| Air Volume | m3/h/m2 | 2008 | 5400 |
| Initial Resistance | Pa | 17 | 29 |
| Final Recommended Resistance | Pa | 250 | 250 |
| Temperature Resistance | ˚c | 90 | 90 |
| Filter Thickness | mm | 5 | 6 |
| Classification | EN779 | G2 | G3 |
| Flame Resistance | DIN 53 438 | K1/F1 | K1/F1 |
| Colour | White | White | |
Fixings
- Velcro can be stitched to the perimeter of the filter and a self-adhesive mate can be used to fix the filter to a flange
- Pull tags can be stitched to the filters to aid their removal
- Wire Frame Filters can be folded to any reasonable angle, or hinged for flexibility.
- Personalized name tags can be stitched to all of our Wire Frame Filters, sleeves, and dust holding socks
