Product Overview

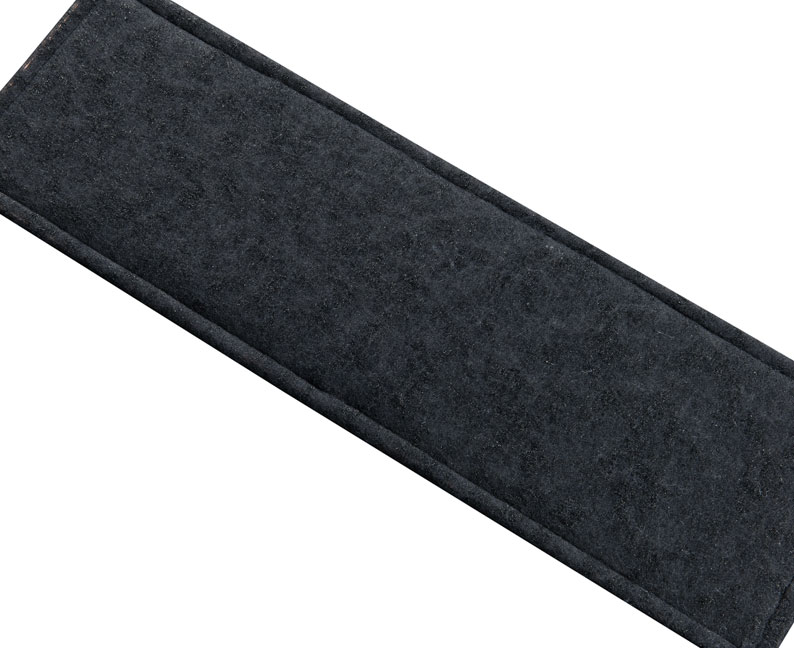

Choose a Black G2 Synthetic Wire Frame Filter where you need the filter to be darker, such as for discrete location behind a grille. Other functionality similar to the White G2 version.
(Also referred to as slimline filters, circa frames, rod frame filters, or peri frames)
Interested in this Product?
Why not drop us a message and we'll get back to you
Applications
Wire Frame Filter with G2 grade black polyester non-woven media.
Light, robust and versatile, and available in G2 Grade, this filter is similar to the White G2 Wire Frame Filter, and has a low pressure drop suitable for many applications.
Used widely to prevent the build-up of dust and dirt in air conditioning units, fan coil systems, warm air furnaces, refrigeration counters and electronic equipment cabinets. The low resistance makes it ideal for protecting heat exchanger coils from dust, carpet fluff etc.
Also used as a protective pre-filter for higher grade filters.
Performance
| Black Synthetic Wire Frames | ||
|---|---|---|
| G2 | ||
| Average Arrestance | % | 79 |
| Initial Arrestance | % | 70 |
| Air Volume | m3/h/m2 | 5400 |
| Initial Resistance | Pa | 10 |
| Final Recommended Resistance | Pa | 200 |
| Temperature Resistance | ˚c | 100 |
| Filter Thickness | mm | 5 |
| Classification | EN779 | G2 |
| Flame Resistance | DIN 53 438 | Pass |
| Colour | Black | |
Fixings
- Velcro can be stitched to the perimeter of the filter and a self-adhesive mate can be used to fix the filter to a flange
- Pull tags can be stitched to the filters to aid their removal
- Wire Frame Filters can be folded to any reasonable angle, or hinged for flexibility.
- Personalized name tags can be stitched to all of our Wire Frame Filters, sleeves, and dust holding socks
